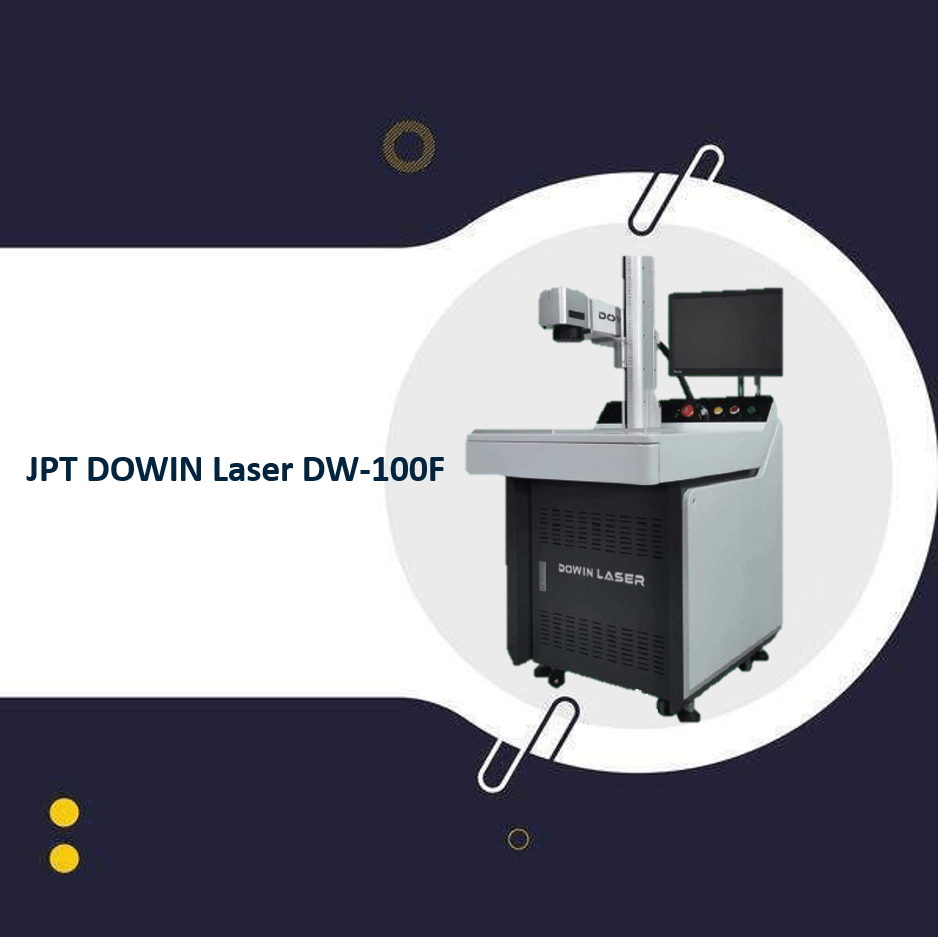

JPT DOWIN Laser DW-100F
Manufacture:
German specifications in China
Power
100 watt
Print Table Area:
300×300 MM
Printer Height:
750 mm when using 1064 auto focus lens
Printer weight
Machine block weight: 125 kg
Max weight
10kg
Red laser Pointer
To accurately and easily define the work according to the model
Epicenter
Height with electronic laser sensor
Resolution
2440 dpi resolution
Drilling Speed
12000 mm/sec drilling and cutting up to 0.5 mm (iron – aluminum)k
Printer Dimensions:
870x645x990 mm
Printer Dimensions in box
- 1000x900x1100 mm
Custom perforated table
Automatic control is included with the machine
Lens Size 30 cm
Integrated inside the
machine to create a larger space and automatic control the program
Lens Size 11 or 17 cm
Compatible with other lenses with electronic dimension update (optional)
Application
Eiser Fiber Control, Electronic control compatible with design programs
Attached
Compact computer + keyboard + mouse + digital screen
Additional Attached
Cylindrical drilling for cups and pens (attached) + Cylindrical drilling
for rings (optional) + Metal fixing table for cutting (optional)
Working Table
Processed with perforated iron alloy, which facilitates the fixing of materials
Communication
Built-in direct intercom
Materials
All metals without exception + opaque plastic
Exhaust hood with electronic filter
To extract smoke and emissions, which is necessary for the safe :
operation of the laser machine and to protect the motors, lens,
mirrors, and to prevent odors from emitting. It is supported by
filters and an electronic operating system (optional)
